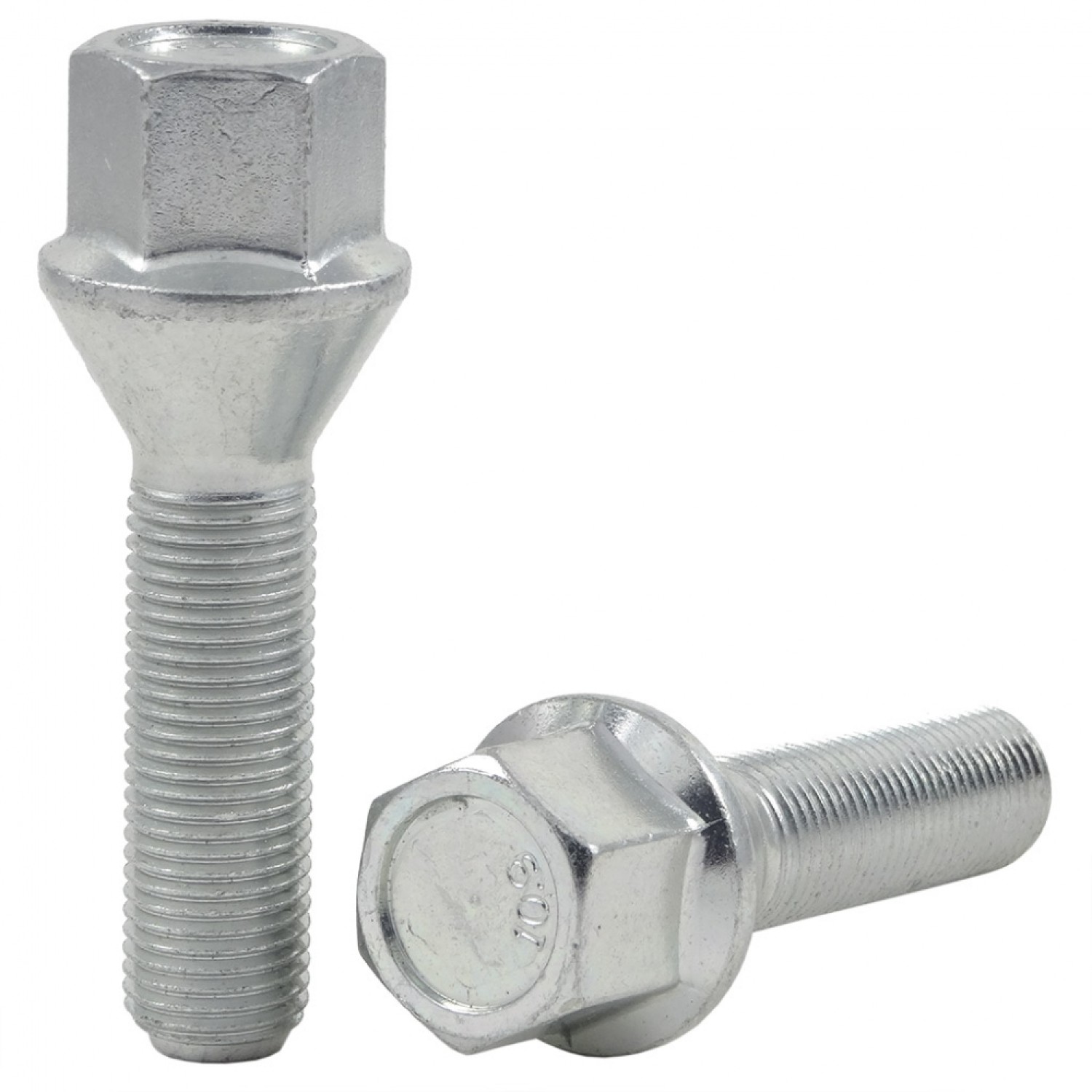

Wheel bolt M12x1.25x39 mm 17 mm hex (Conical)
- Product Code: B17ACN39
- Availability: In Stock
-
1.50€
- Ex Tax: 1.24€
/ piece
Thread length
Colour / finish
Total
Wheel fastening component. Match the thread, seat and usable length to the wheel and vehicle before ordering.
Specifications
| Thread diameter | M12 |
|---|---|
| Thread pitch | 1.25 mm |
| Thread length | 39 mm |
| Hex size | 17 mm |
| Seat type | Conical, 60° |
| Warranty | 24 months |
| Strength class | 10.9 |
| Finish | Zinc-plated |
| Manufacturer | Ellis Engineering (Italy) |
| Manufacturer part number | B17ACN39 |
Selection and use
- Check thread diameter, pitch, seat shape and usable length against the original wheel fastening specification.
- Use the tightening torque specified by the vehicle or wheel manufacturer. Final tightening must be carried out with a torque wrench.
Important: Matching the thread alone does not establish compatibility. Seat geometry, length, clearance and the specific wheel installation must also be checked.
| 4wheels technical data | |
| Finish | Zinc-plated |
| Hex size | 17 mm |
| Manufacturer | Ellis Engineering (Italy) |
| Manufacturer part number | B17ACN39 |
| Seat type | Conical, 60° |
| Strength class | 10.9 |
| Thread diameter | M12 |
| Thread length | 39 mm |
| Thread pitch | 1.25 mm |
| Warranty | 24 months |
Tags: Wheel bolts
