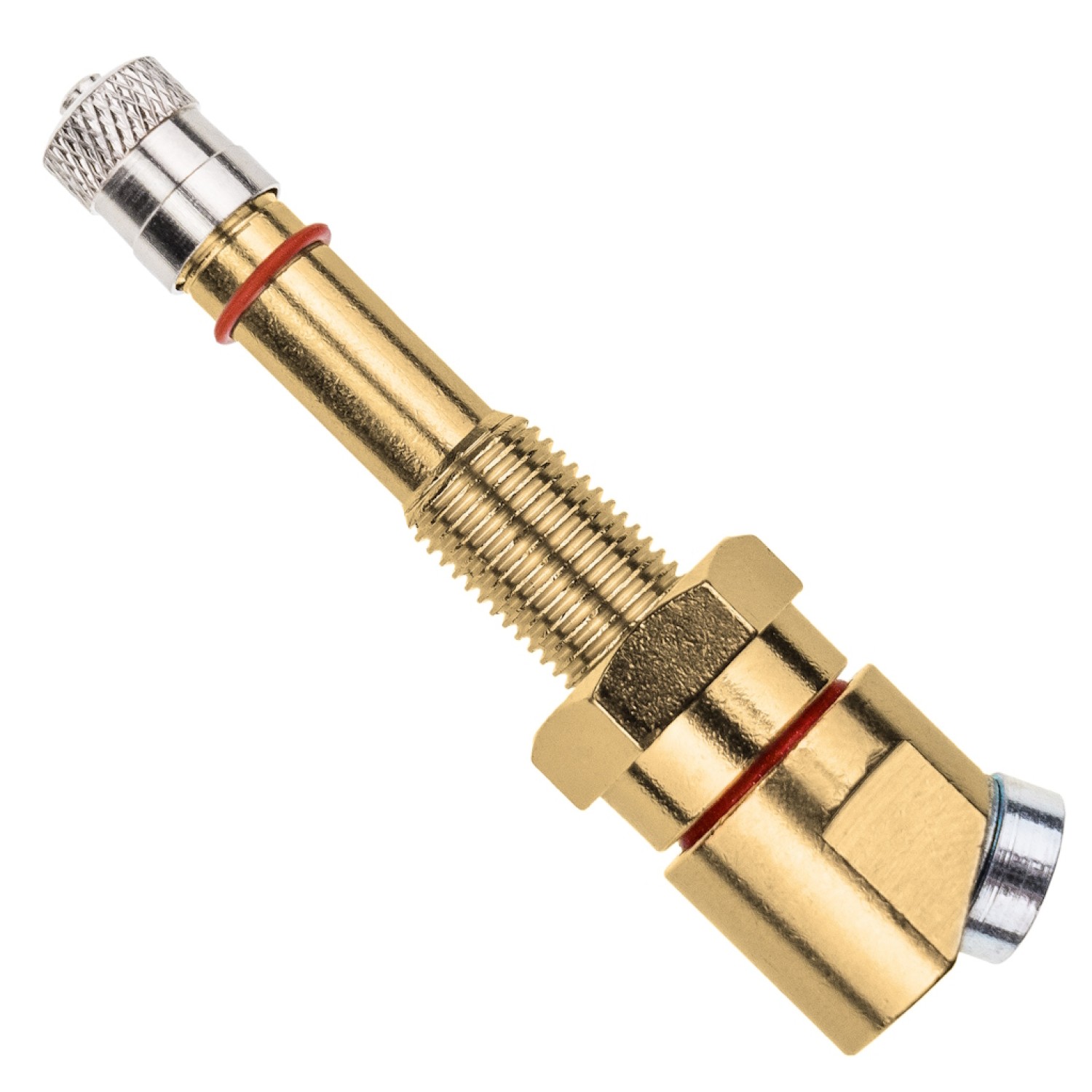

TPMS valve 50MS – TS03 STE
- Product Code: 50MSTS03STE
- Availability: In Stock
Tyre valve or TPMS service component. Match the valve type, fitting dimensions and sensor application before ordering.
Specifications
| Product type | TPMS valve |
|---|
| Type | 50MS - TS03 STE, tiesus, prisukamas |
|---|
| Material | Brass |
|---|
| Wheel valve hole | Ø 9.7 mm (+0.3 mm) |
|---|
| Overall height | 67 mm |
|---|
| Height above the wheel | 50 mm |
|---|
| Nut tightening torque | 9–14 Nm; raktas – 16 mm |
|---|
| Sensor screw tightening torque | 4 Nm; M6, TX20 |
|---|
| Warranty | 24 months |
|---|
Selection and use
- Confirm the product variant and supplied items before use. Follow the manufacturer instructions for the relevant equipment or material.
| 4wheels technical data |
| Height above the wheel |
50 mm |
| Material |
Brass |
| Nut tightening torque |
9–14 Nm; raktas – 16 mm |
| Overall height |
67 mm |
| Product type |
TPMS valve |
| Sensor screw tightening torque |
4 Nm; M6, TX20 |
| Type |
50MS - TS03 STE, tiesus, prisukamas |
| Warranty |
24 months |
| Wheel valve hole |
Ø 9.7 mm (+0.3 mm) |
